A new head with more capacity

The well-known and very popular LT40 sawmill has its new version in the form of the WIDE head with larger capacity.

Benefits
  • 2 Circular Blades. 1 Adjustable Blade.
Description LT40WIDE Sawmill

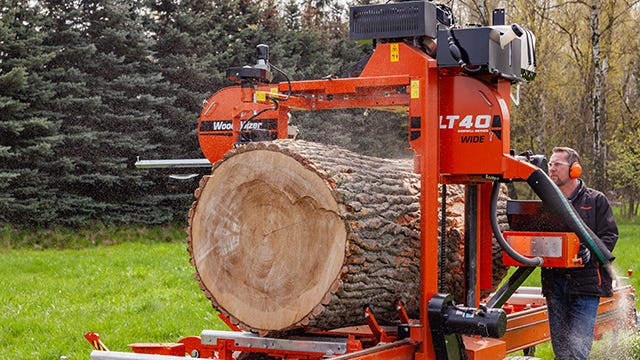

The well-known and very popular LT40 sawmill has its new version in the form of the WIDE head with larger capacity. In the new version of the LT40WIDE sawmill, distance between rollers reaches 84 cm, providing an increase of 12 cm compared to the standard version. A wider head allows you to cut logs of larger diameter - up to 100 cm. Ensuring even better blade stability the new LT40WIDE is equipped with an upgraded blade guide arm.

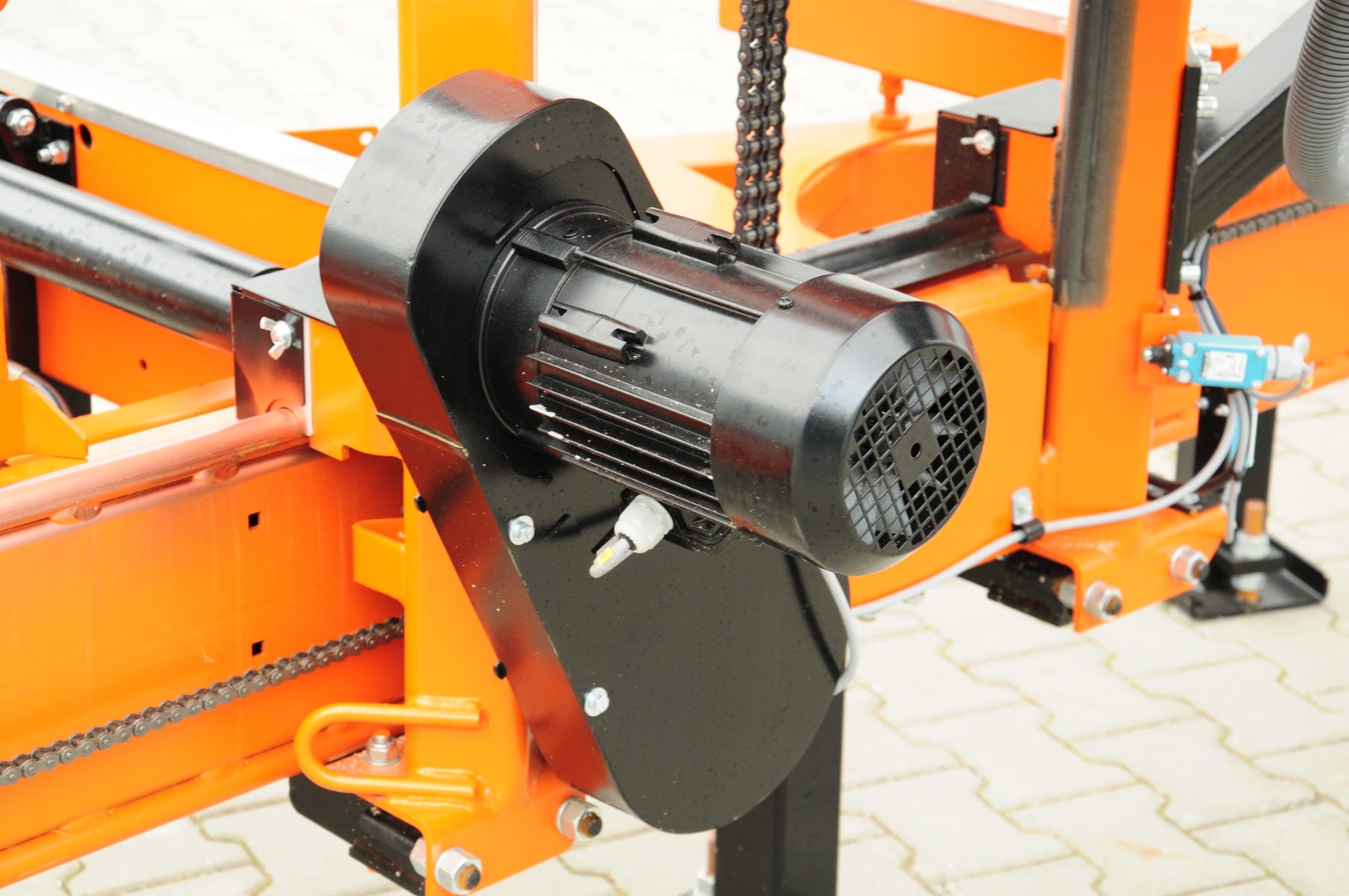

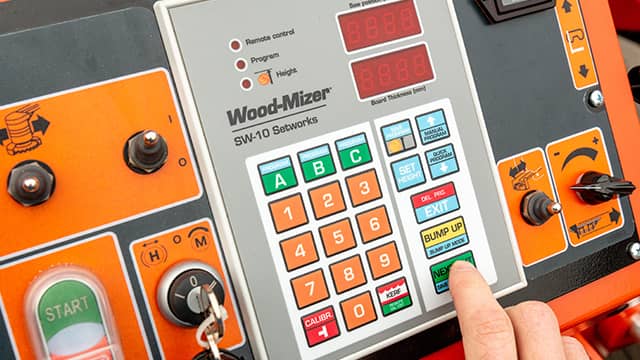

With the standard electronic SW Setworks, simply select the board thickness required and the head height automatically positions for each cut - no waiting for calculations. Forward and reverse movement is made by the adjustable power feed. A water tank feeds lubrication directly to the blade to improve cutting performance and keep the blade clean. The electric blade guide arm keeps the blade supported while cutting various sized material. Blade tension is easily adjusted, and keeps the blade at the proper tension for cutting. Wood-Mizer’s wide range of affordable blades are designed for all cutting requirements, and deliver maximum log yield and minimal waste of the valuable timber.

Read More
Videos LT40WIDE Sawmill
Features LT40WIDE Sawmill

Specifications LT40WIDE Sawmill
Specifications
Power
Power 11 kW (E15) Electric
15 kW (E20) Electric
18.5 kW Electric
28 HP Petrol
38 HP Petrol
Cutting Capacity
Max. Log Diameter 100 cm
Max. Width of Cut 84 cm
Max. Cant Width 72 cm
Max. Depth of Cut 35 cm
Head Features and Options
Setworks SW10
SW PLC1 (for AC models)
SW PLC2 (for AC models)
Accuset2 (for AC and DC models)
Head Up/Down Electric
Head Forward/Reverse Electric
Blade Guide Arm Electric
Blade Lubrication LubeMizer
Blade Tension System Hydraulic Tensioning Handle with Gauge
Debarker Optional
Additional Options Auto Clutch (for DC models)
Laser Sight
Blade
Length 4330 mm
Width 32 mm
35 mm
38 mm
Blade Wheels
Blade Wheel Diameter 483 mm
Blade Wheel Type Belted
Blade Wheel Material Cast Iron
Bed Features and Options
Bed Construction Monorail
Angled Bed Rails Optional
Bed Extensions Bed Extension: 0.5 m
Manual or Hydraulic Bed Extension: 1.8 m, 3.6 m or 7.2 m
Trailer Package Optional
Log Handling
Manual Toeboards
Side Support
Clamp
Winch Log Turner
Log Loader (Manual Pump)

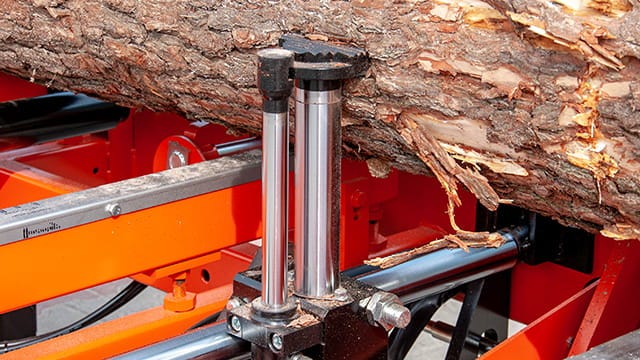

STANDARD Hydraulic 3 Side Supports
Central Clamp on Two Rods
Claw Log Turner
Log Leveling Rollers
Hold-down Clamps
Log Loader
SUPER Hydraulic Chain Turner
2 Vertical Side Support
Central Clamp on Two Rods
Log Leveling Roller
Power Roller with Two Cylinders
Sawmill Features and Options
Frame Construction Cantilever
Standards CE
Options Log Deck
Incline Conveyor
Roller Table
Transfer Deck
Absorption Roller
