Wood-Mizer Introduces SlabMizer Slab Flattener for Wide Material

Slab Flattener Wood Mizer MB200 SlabMizer flattening a large slab for a table top
30.12.2020



Developed in the USA, the SlabMizer efficiently surfaces and flattens wood slabs, boards, burls, cookies, and other wide material with minimal labor.

Compared to a traditional router or planer, the SlabMizer flattens wider and thicker material up to 1420 mm wide and 203 mm thick in less time using powered cutter head directional controls with variable feed speed. For larger capacity, 1520 mm modular table extensions can be added to extend the material length.

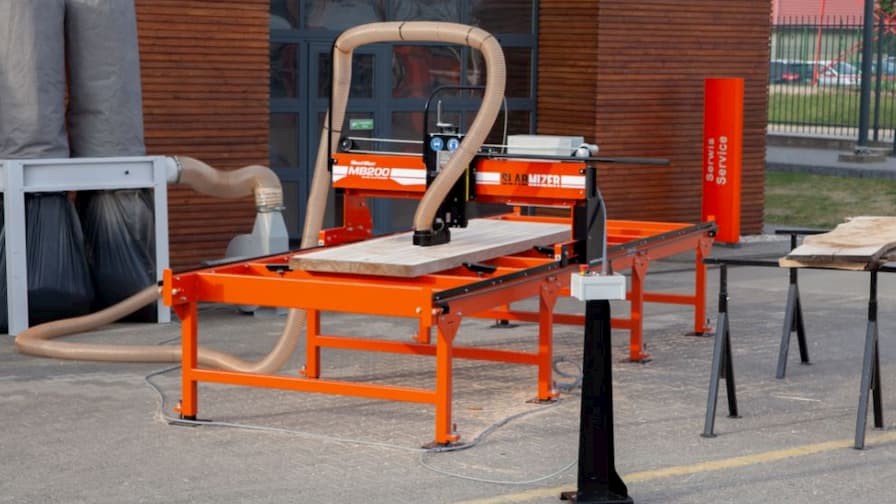

 Slab Flattener Wood-Mizer MB200 SlabMizer with sawdust extraction system

Slab Flattener Wood-Mizer MB200 SlabMizer solid work table with clamps



Heavy-duty welded steel frame with four adjustable clamps keep material secure. Easily adjust the cutting depth by a hand crank located on the top of the cutter head. A scale below the crank has 0,4 mm increments for precise positioning. You can take off from 0,4 mm to 3,2 mm in one pass.

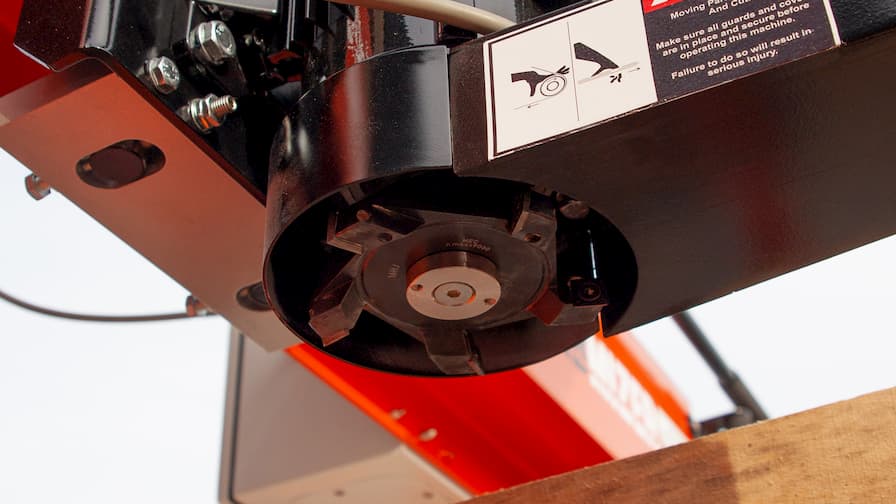

Slab Flattener Wood-Mizer MB200 SlabMizer the cutterhead underneath



The cutter head is engaged and operated by a powered control console. Using a long cable, you can place it from any side of the machine. The console is attached to a steel stand. Powered controls include on/off, variable feed speed, and a joystick direction control for the X and Y axis for finishing material with or against the grain.

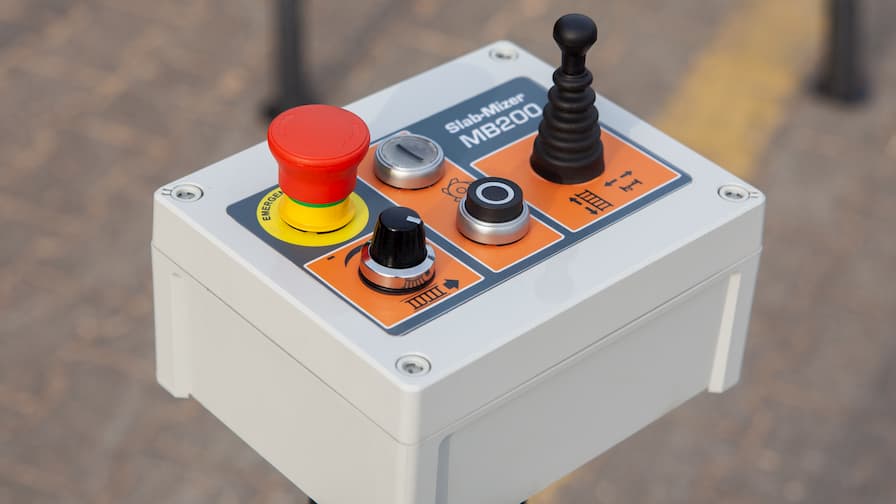

Slab Flattener Wood-Mizer MB200 SlabMizer control unit with joystick



You can choose to operate the cutting head manually. Using two push bars on the right side of the head, change the cutting head's position. Once both sides of the slab are surfaced, fine finishing is accomplished by using the 177 mm orbital sanding head attachment for the desired finish. Dust from the operation is easily removed with a 100 mm diameter extraction port on top of the cutter head that can be connected to a dust extraction system. Connect dust extraction hose to a boom to keep it out of the operator's view.



Slab Flattener Wood-Mizer MB200 SlabMizer grinding attachments



With the addition of the SlabMizer, Wood-Mizer offers the full range of wood processing equipment from forest to final form that can turn a log into a kiln-dried, finished wood product.



MB200 SlabMizer Features

  • 1420 mm max material width and 203 mm max thickness
  • 3962 mm material length or longer with 1520 mm modular table extensions
  • Powered cutter head directional controls with variable feed speed or manual feed
  • Cutter head with five 4-sided carbide knives driven by 0,18 kW motor with 3950 RPM speed
  • Orbital sanding head attachment for fine finishes
  • Built in Poland

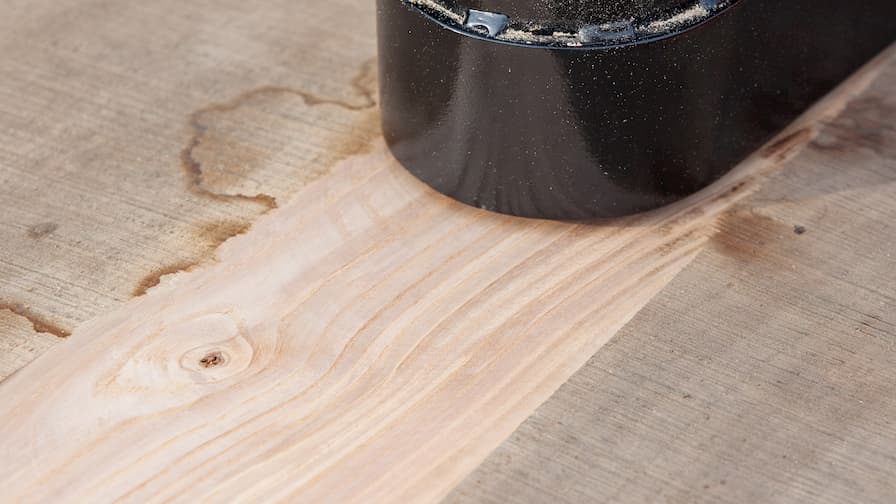

Slab Flattener Wood-Mizer MB200 SlabMizer high quality finished surface of slabs



For more information, contact your local Wood-Mizer representative. .

***
